Onboarding Wizard

A multi-step onboarding wizard implementation across React, Vue, and Lit.

Try it Live

Open any framework example directly in StackBlitz:

Open React in StackBlitzOpen Vue in StackBlitzOpen Lit in StackBlitz

View on GitHub

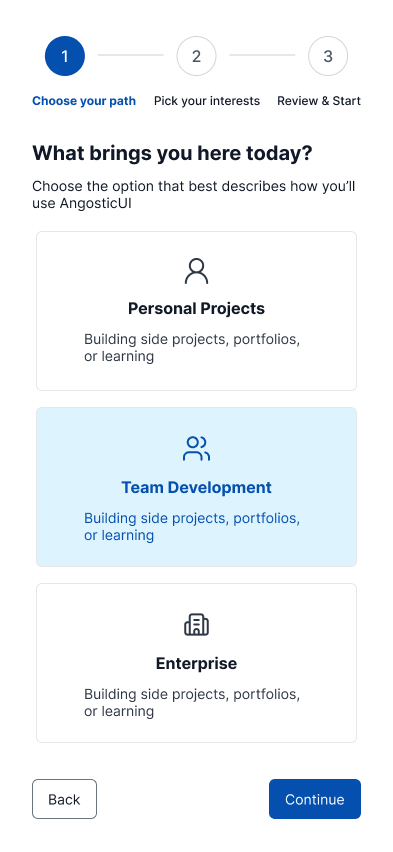

Mobile - Step 1

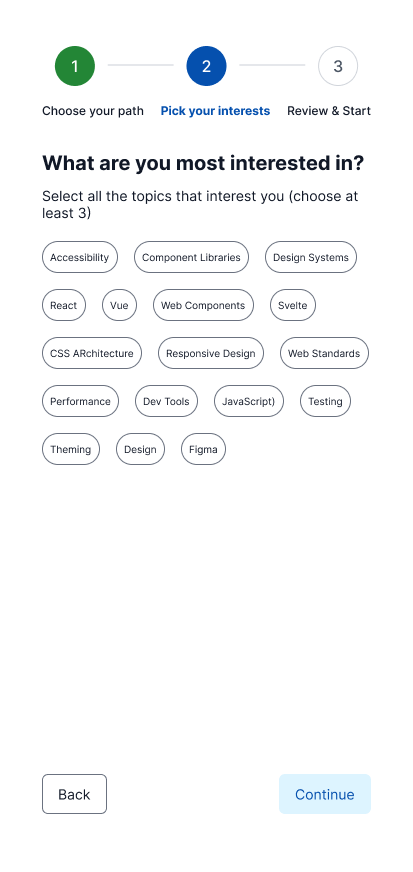

Mobile - Step 2a

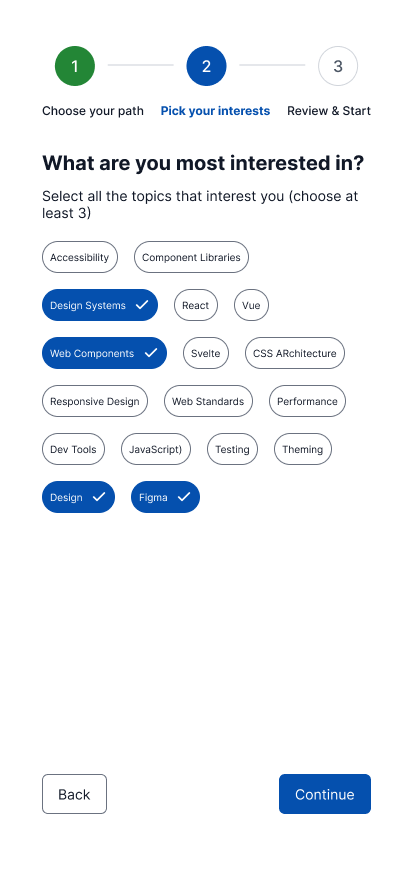

Mobile - Step 2b

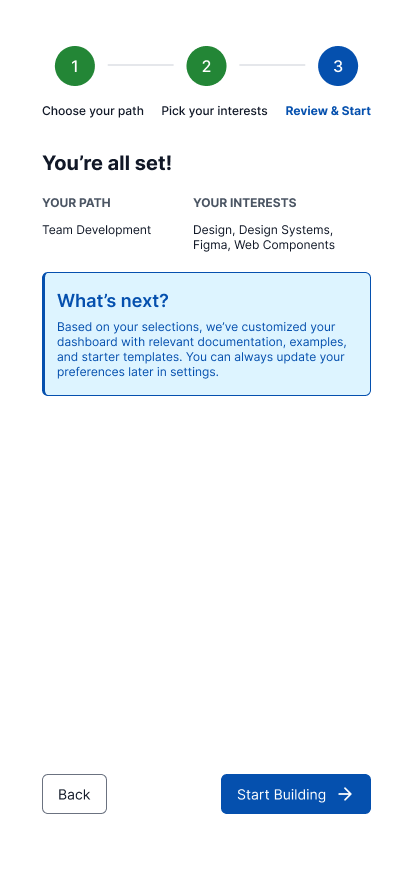

Mobile - Step 3

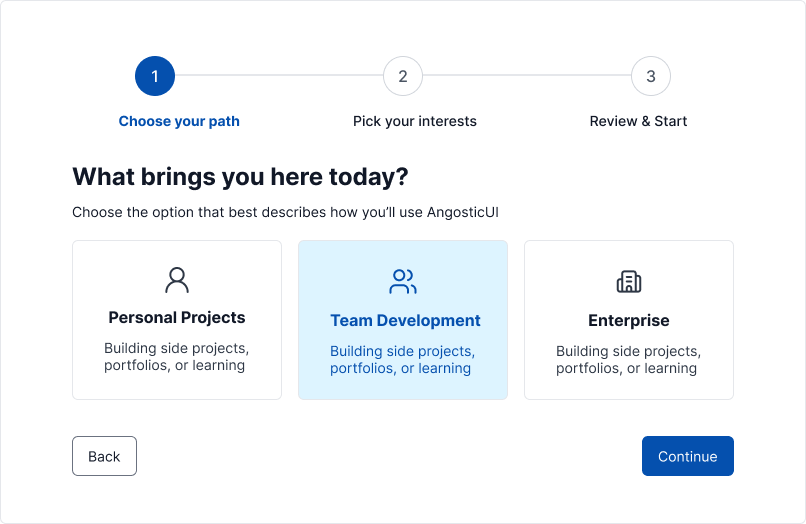

Desktop - Step 1

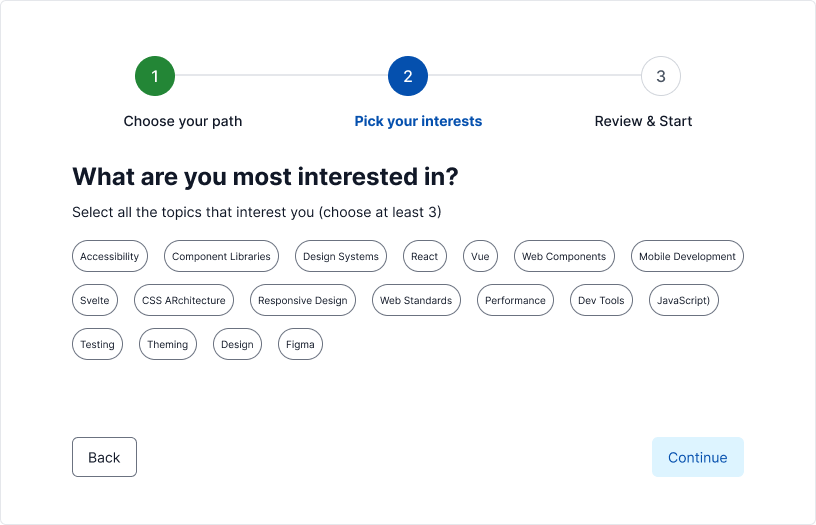

Desktop - Step 2a

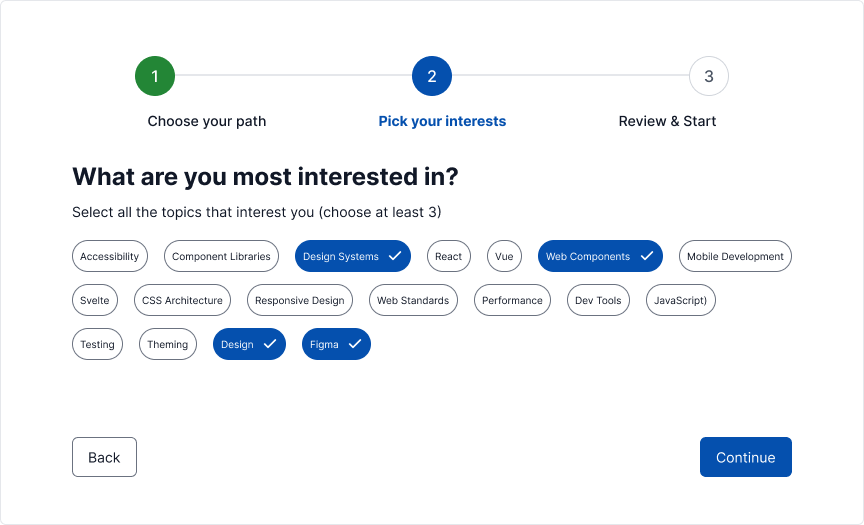

Desktop - Step 2b

Desktop - Step 3

Skins & Customization

Screenshots show the default skin. Each live example includes a skin switcher (bottom-right corner) to preview other themes instantly. Colors, spacing, and typography are fully customizable via design tokens.

What's Included

Experimental Feature: AI-Assisted UI Generation

Generating UI components via LLM prompting is non-deterministic; different models (and even different versions of the same model) can produce drastically varying results from identical prompts.

While these prompts have been tested using the Claude Code CLI (running Claude Sonnet 4.5 and Opus 4.5), the output remains experimental. Always verify generated code for visual consistency, accessibility, and production readiness before deployment.

• Three framework examples: React, Vue, and Lit implementations
• Multi-step wizard flow: Welcome, interests selection, frequency selection, and completion steps
• Timeline progress indicator: Visual step tracking with the Timeline component
• PROMPT-3-FRAMEWORKS.md: Feed directly to your LLM for AI-assisted customization
• PROMPT-VUE.md: LLM prompt to generate Vue onboarding wizard.
• PROMPT-REACT.md: LLM prompt to generate React onboarding wizard.
• PROMPT-LIT.md: LLM prompt to generate Lit onboarding wizard (web components so use this for other frameworks like Svelte, Angular, etc.).

Using with an LLM

The PROMPT-3-FRAMEWORKS.md file contains everything an AI assistant needs to understand and modify the onboarding wizard:

1. Copy the PROMPT-3-FRAMEWORKS.md contents
2. Paste into Claude, ChatGPT, or your preferred LLM
3. Ask for customizations: "Add a step for selecting notification preferences"

Framework-Specific Prompts

You can follow these same steps for the framework-specific prompts located in the <root>/v2/playbooks/onboarding/ directory:

• PROMPT-VUE.md
• PROMPT-REACT.md
• PROMPT-LIT.md

These versions allow you to customize the onboarding wizard for your specific needs.

---

Variant II — Carousel Slider Wizard

Distributes interest selection across three focused category steps (6 items each) with a momentum-based, one-question-per-screen carousel UX. Replaces the Timeline step indicator with a linear AG Progress bar, inserts a mini confirmation interstitial at the halfway point, and adds a dark mode header toggle and SkinSwitcher FAB.

Open React in StackBlitzOpen Vue in StackBlitzOpen Lit in StackBlitz

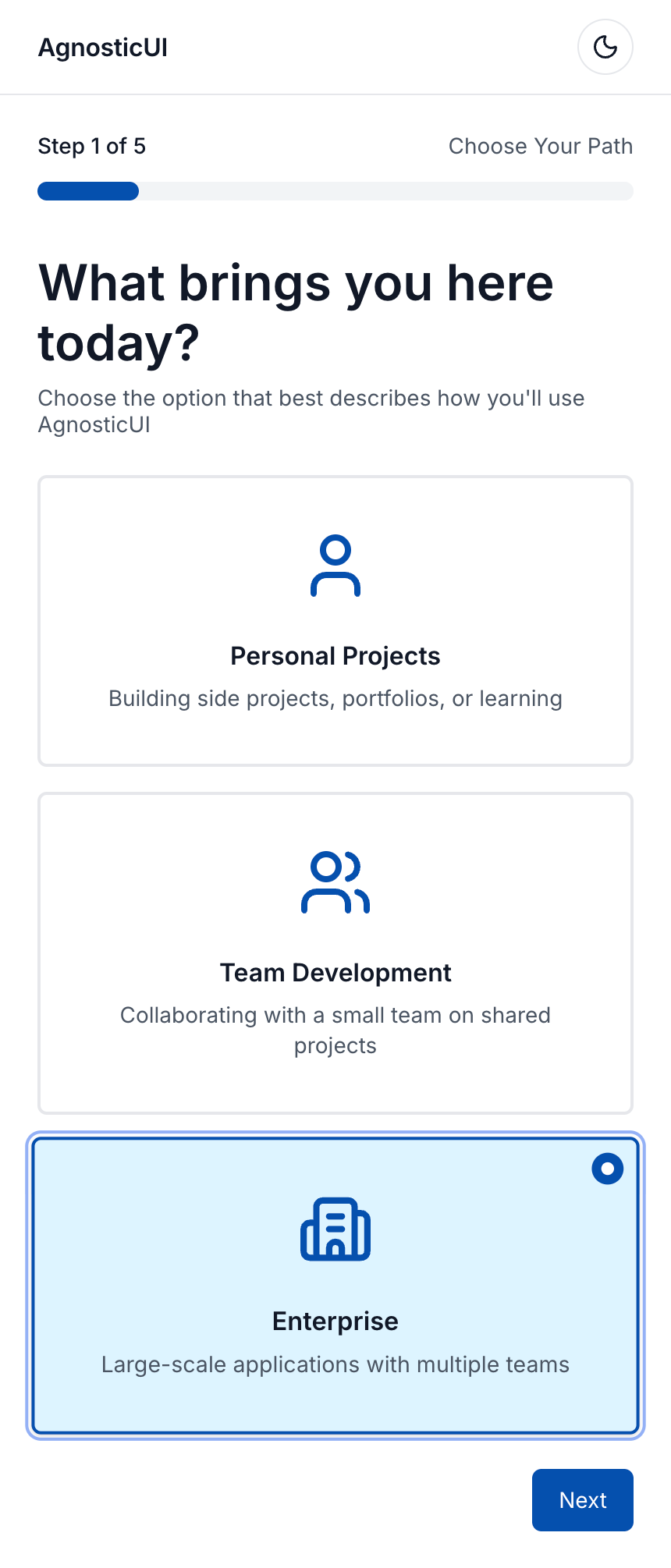

Mobile - Step 1: Choose Path

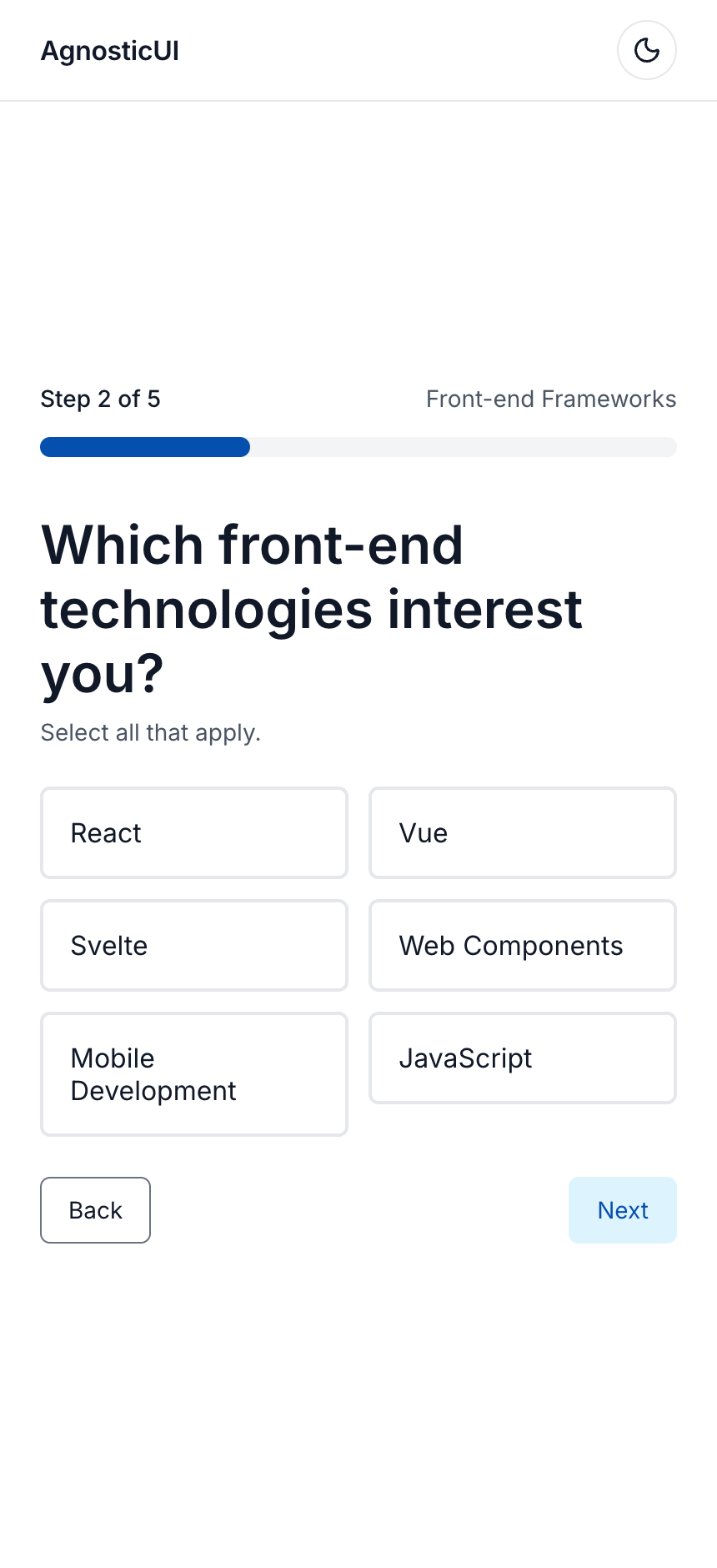

Mobile - Step 2: Frameworks

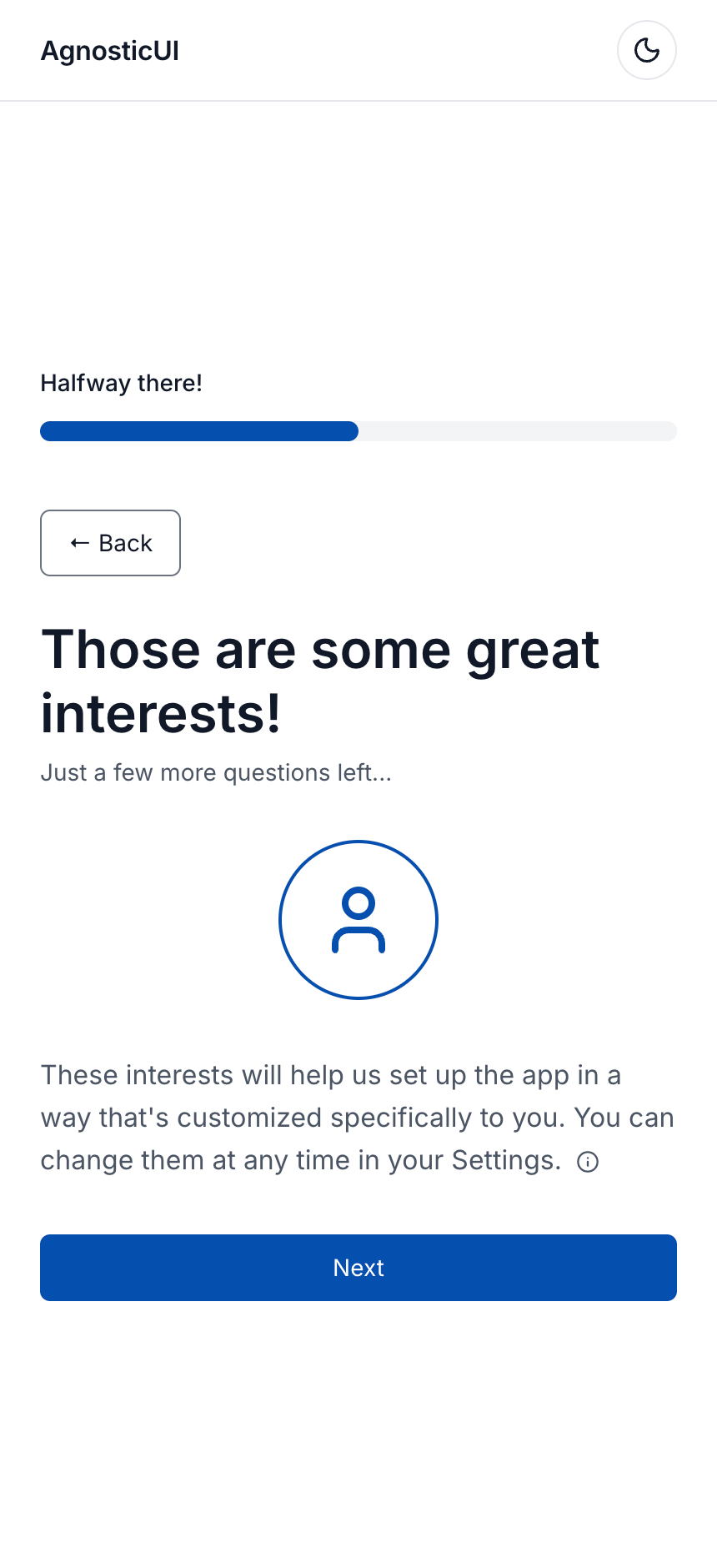

Mobile - Step 3: Interstitial

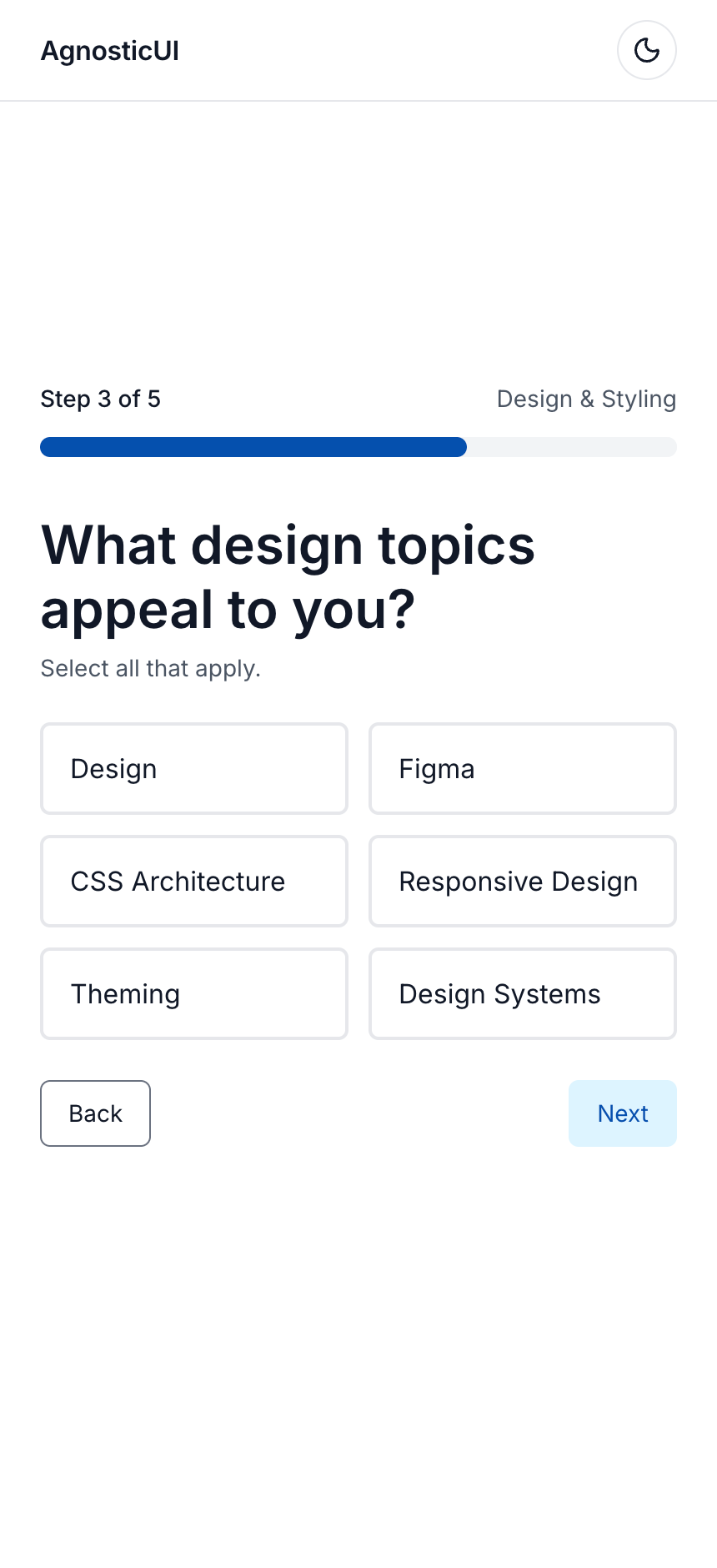

Mobile - Step 4: Design

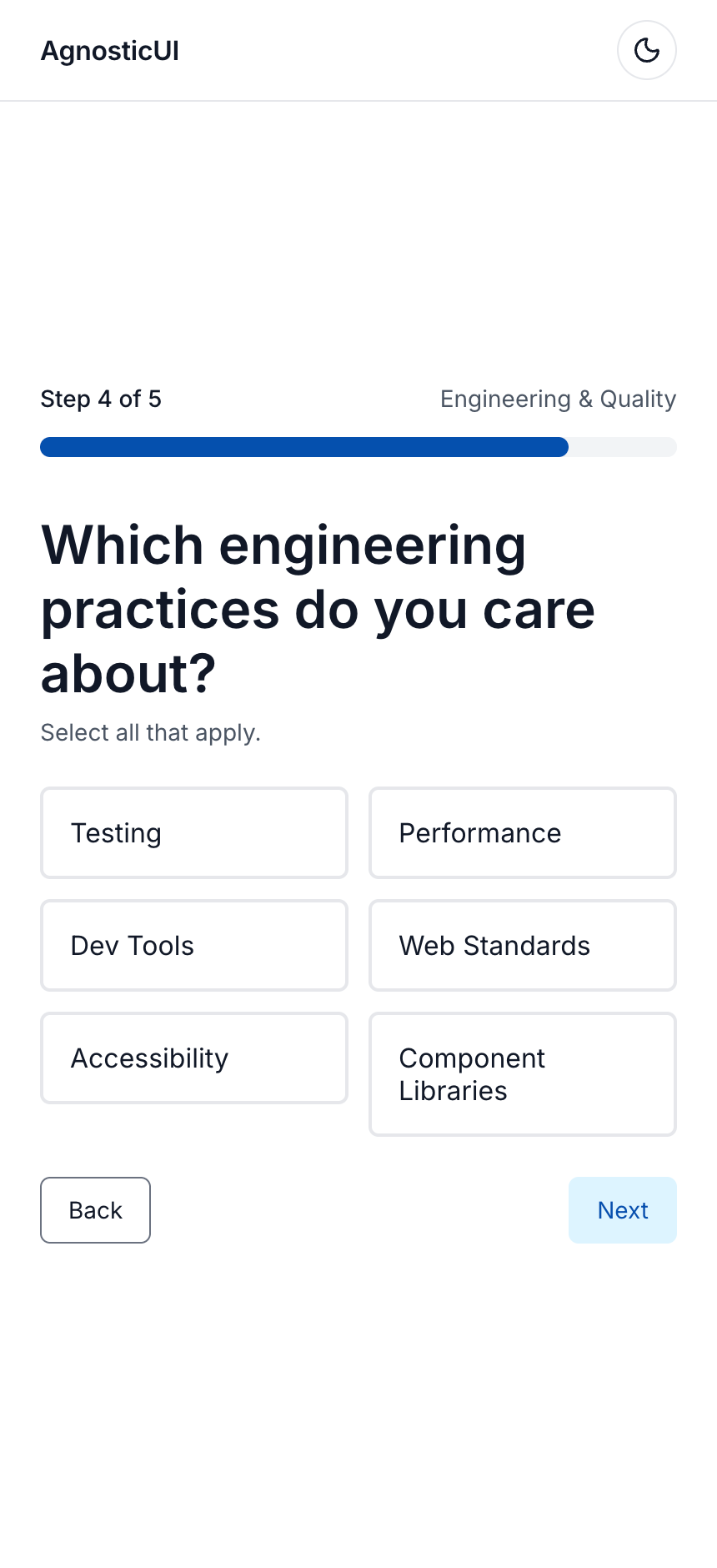

Mobile - Step 5: Engineering

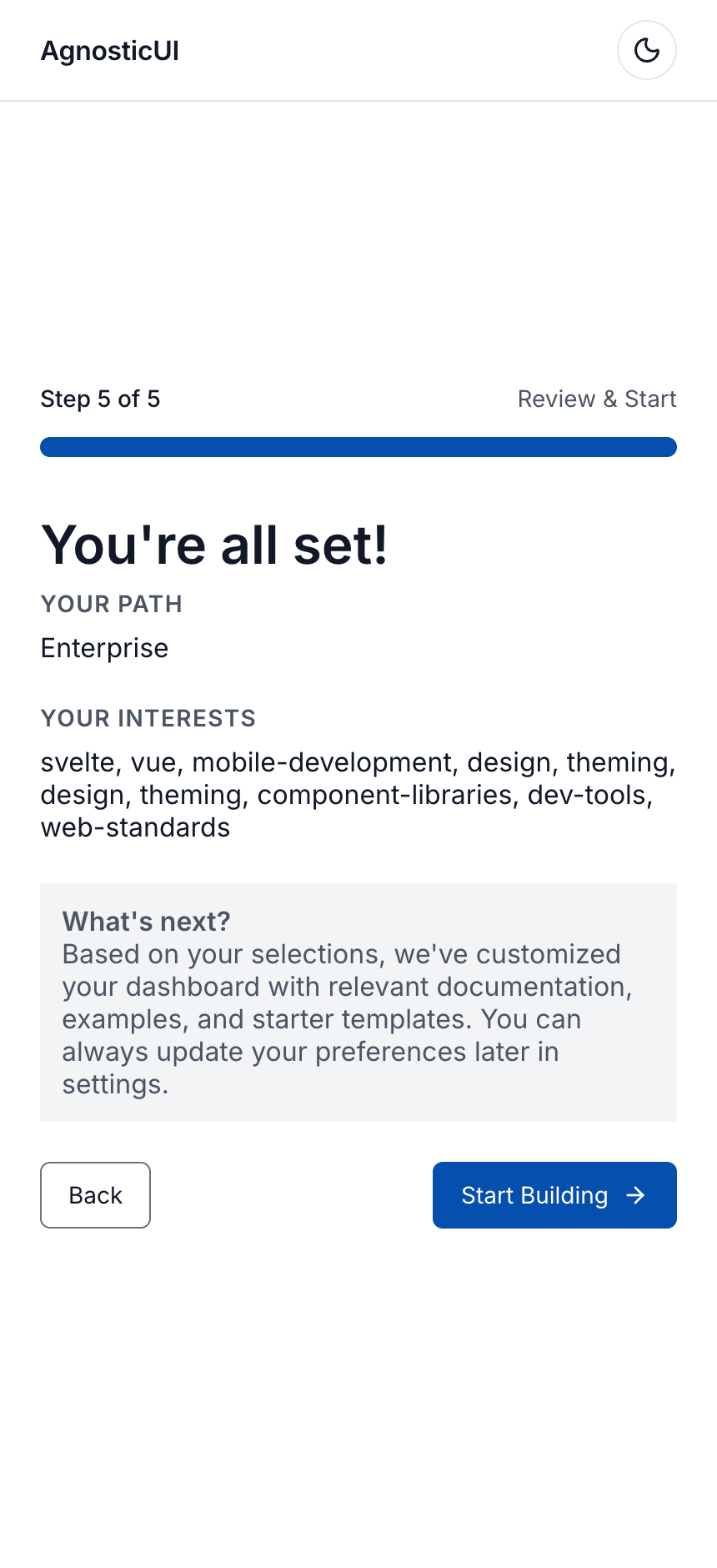

Mobile - Step 6: Review

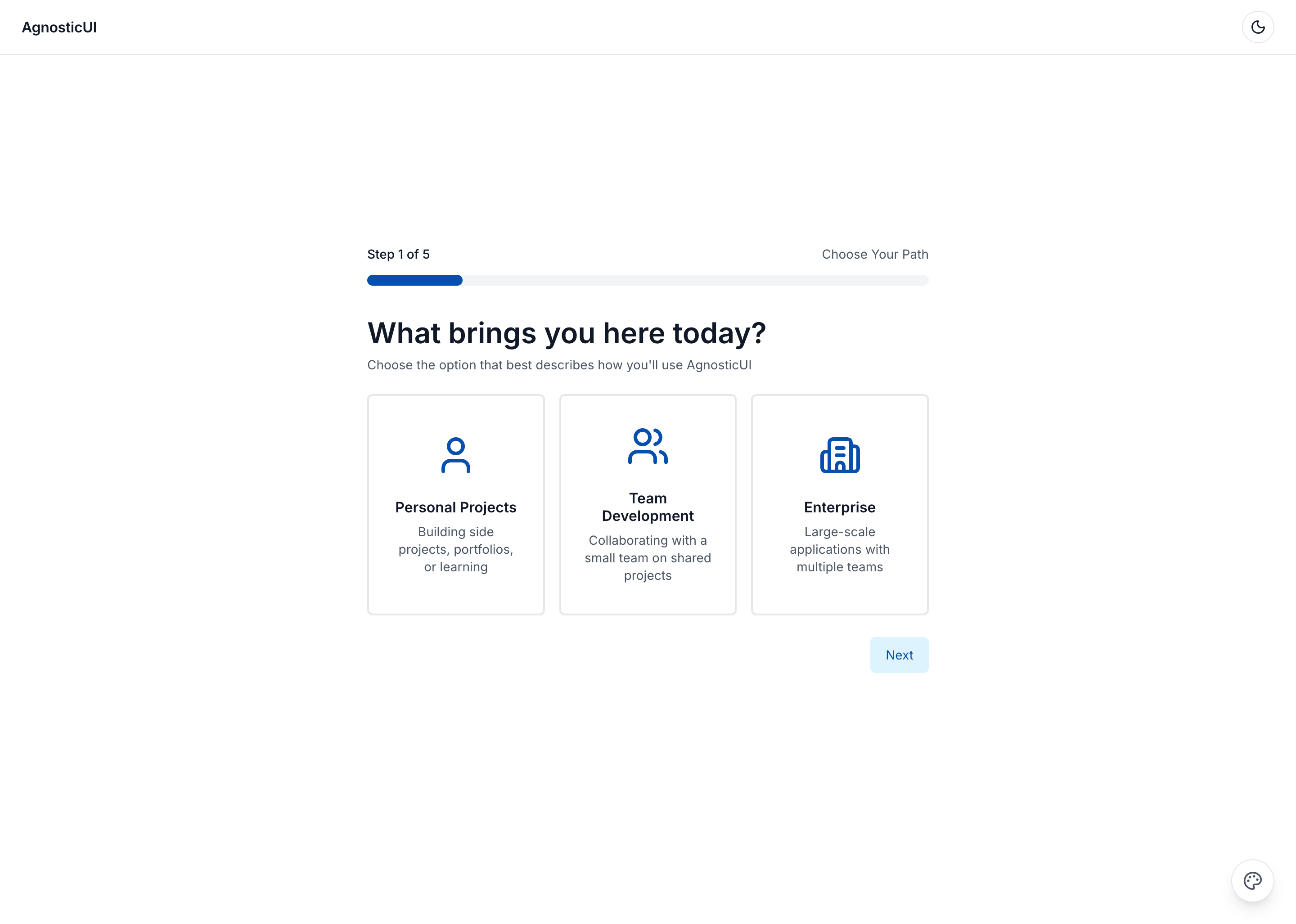

Desktop - Step 1: Choose Path

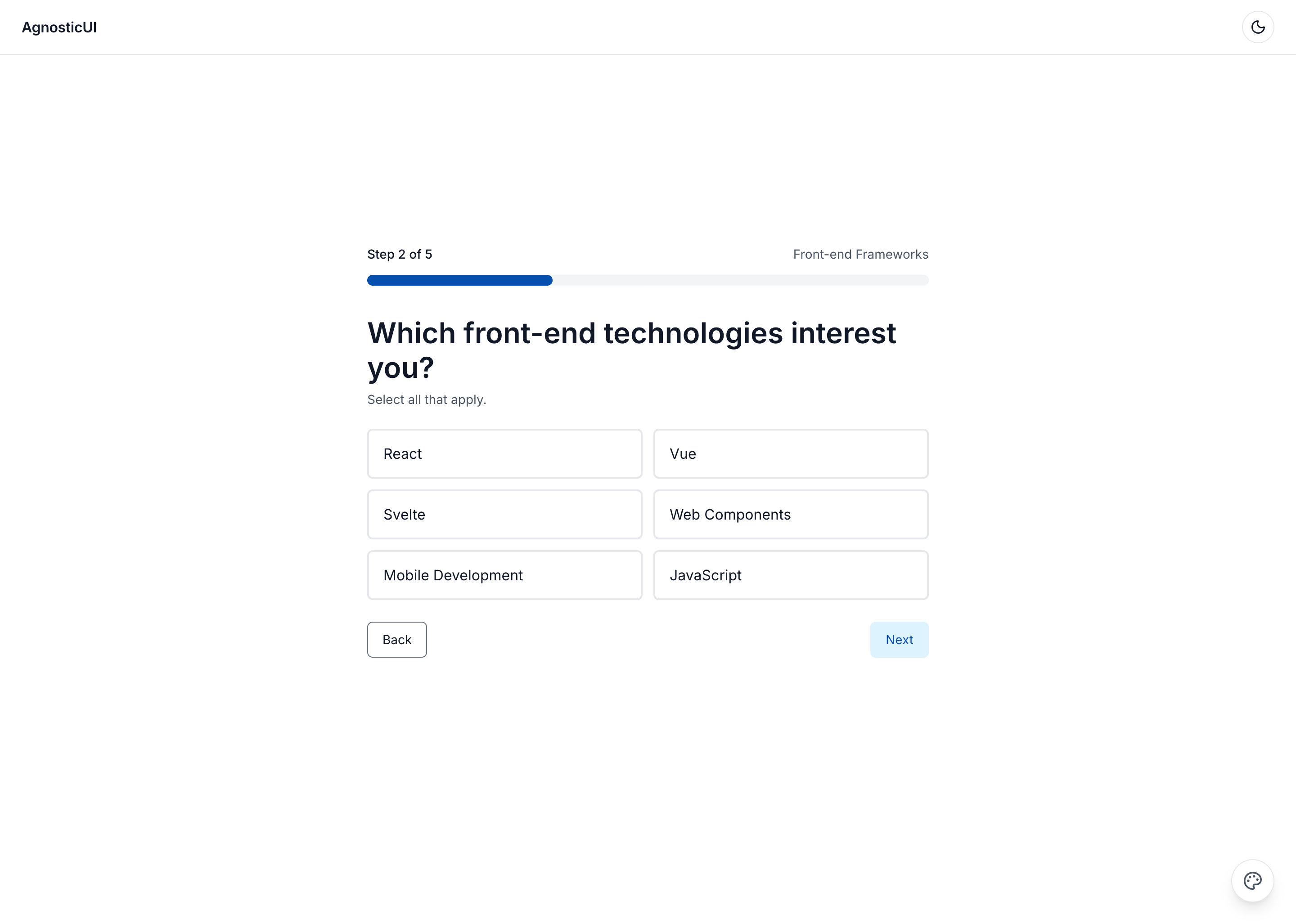

Desktop - Step 2: Frameworks

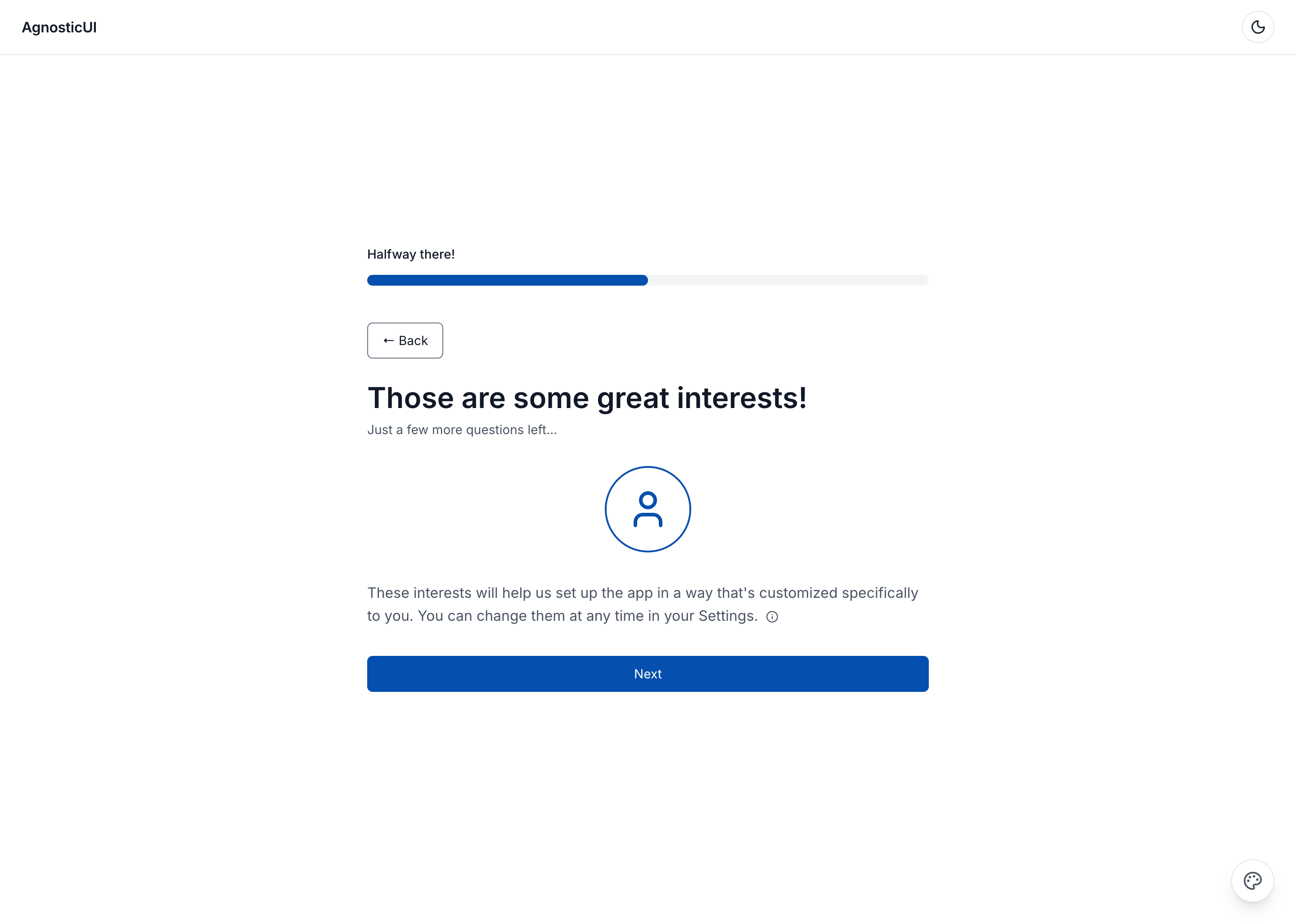

Desktop - Step 3: Interstitial

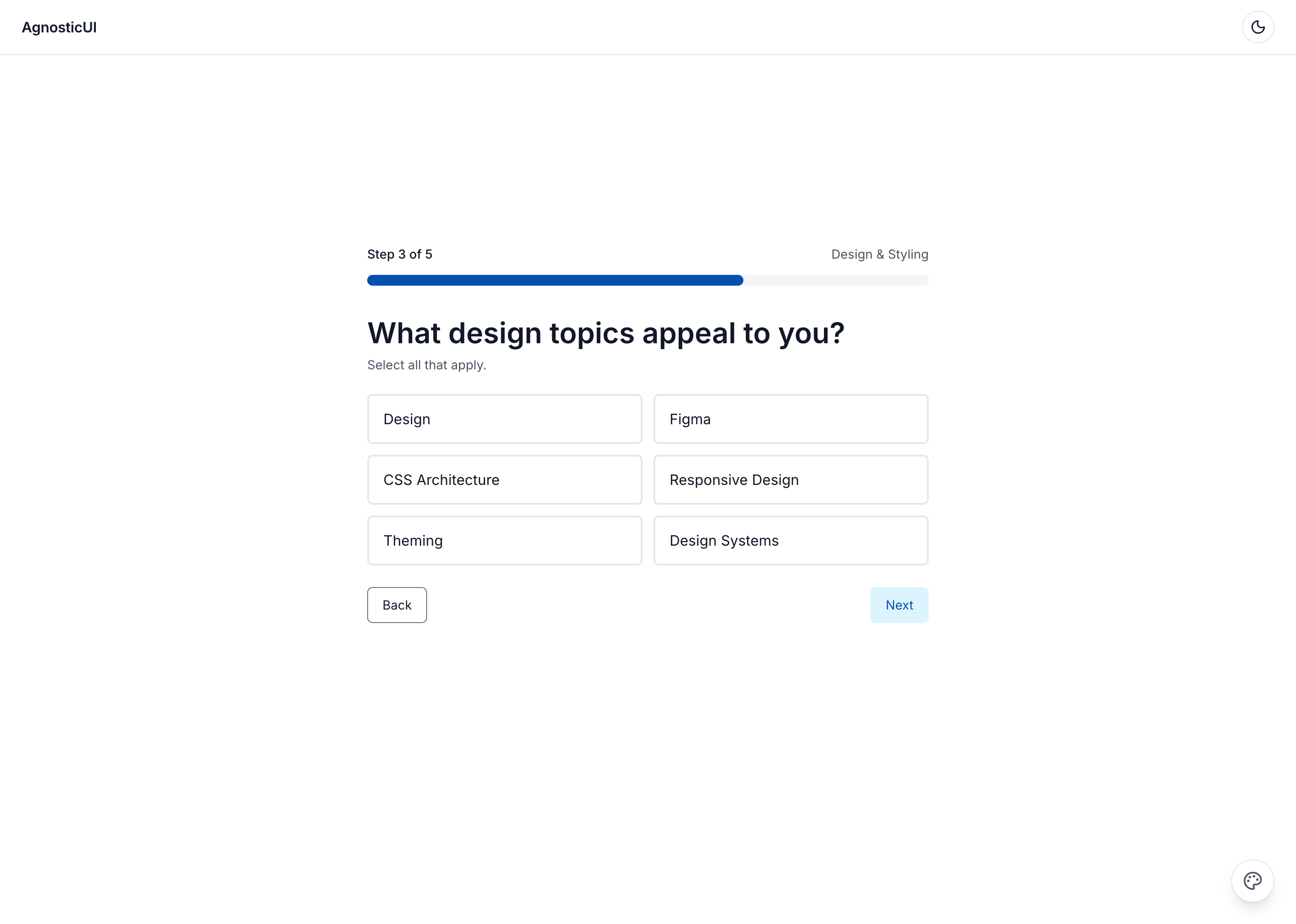

Desktop - Step 4: Design

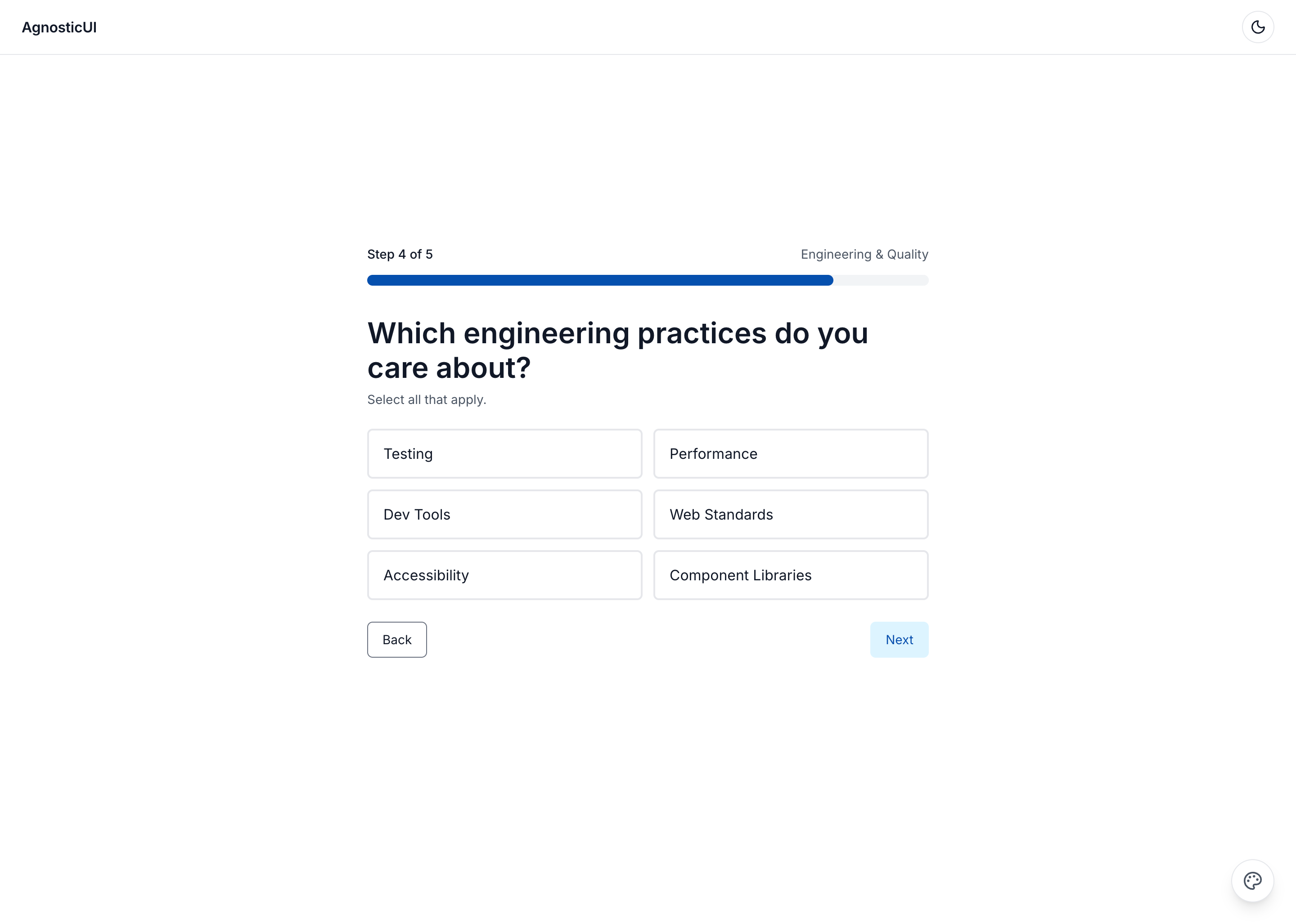

Desktop - Step 5: Engineering

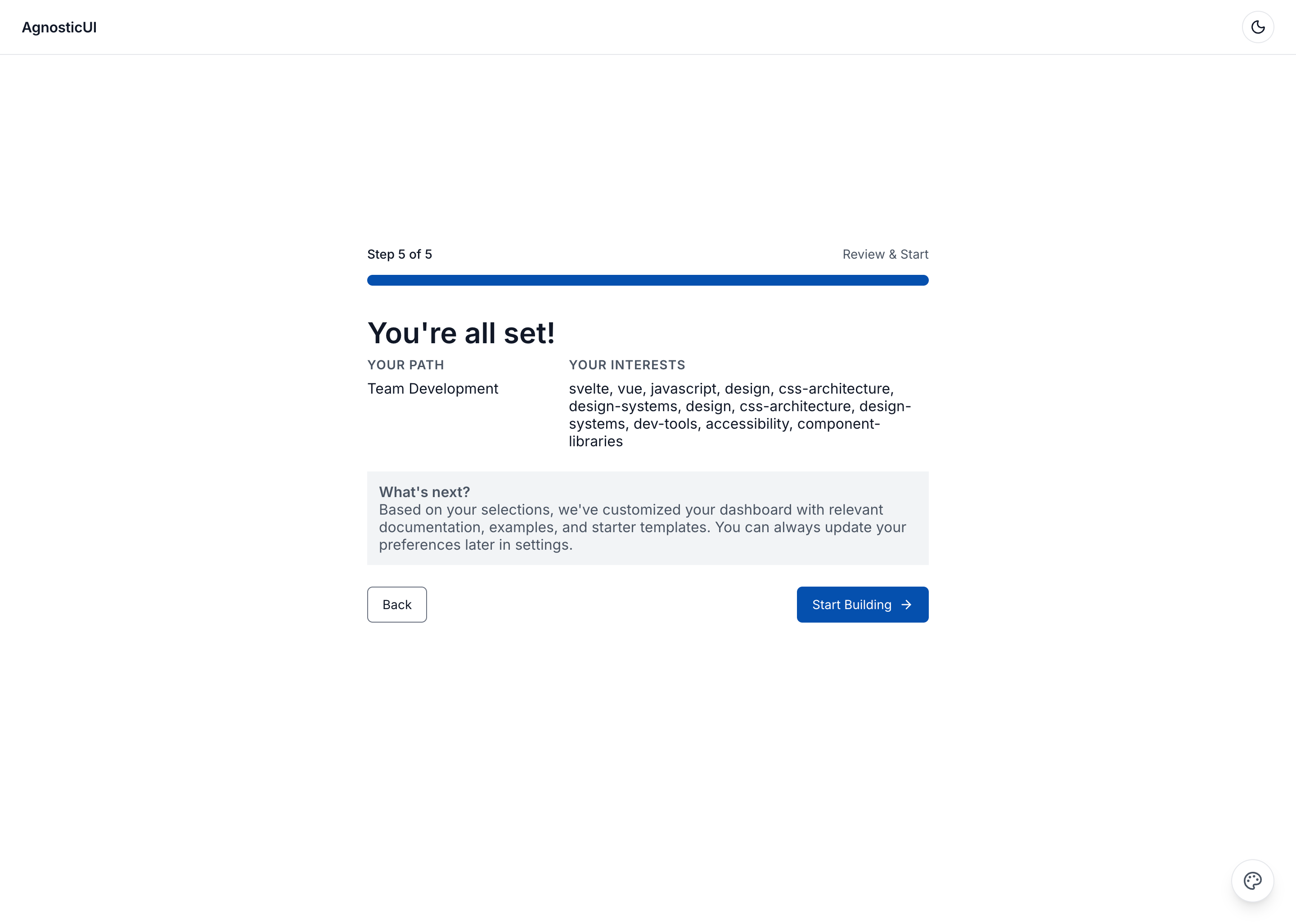

Desktop - Step 6: Review

Variant II Prompt

To generate or customize this variant with an LLM, use PROMPT-3-FRAMEWORKS-V2.md.

---

Components Used

Component	Purpose
ag-button	Navigation and action buttons
ag-timeline	Step progress indicator
ag-icon	Icons for steps and selections
ag-alert	Success message on completion
ag-selection-card-group	Interest selection cards
ag-selection-button-group	Frequency selection options
